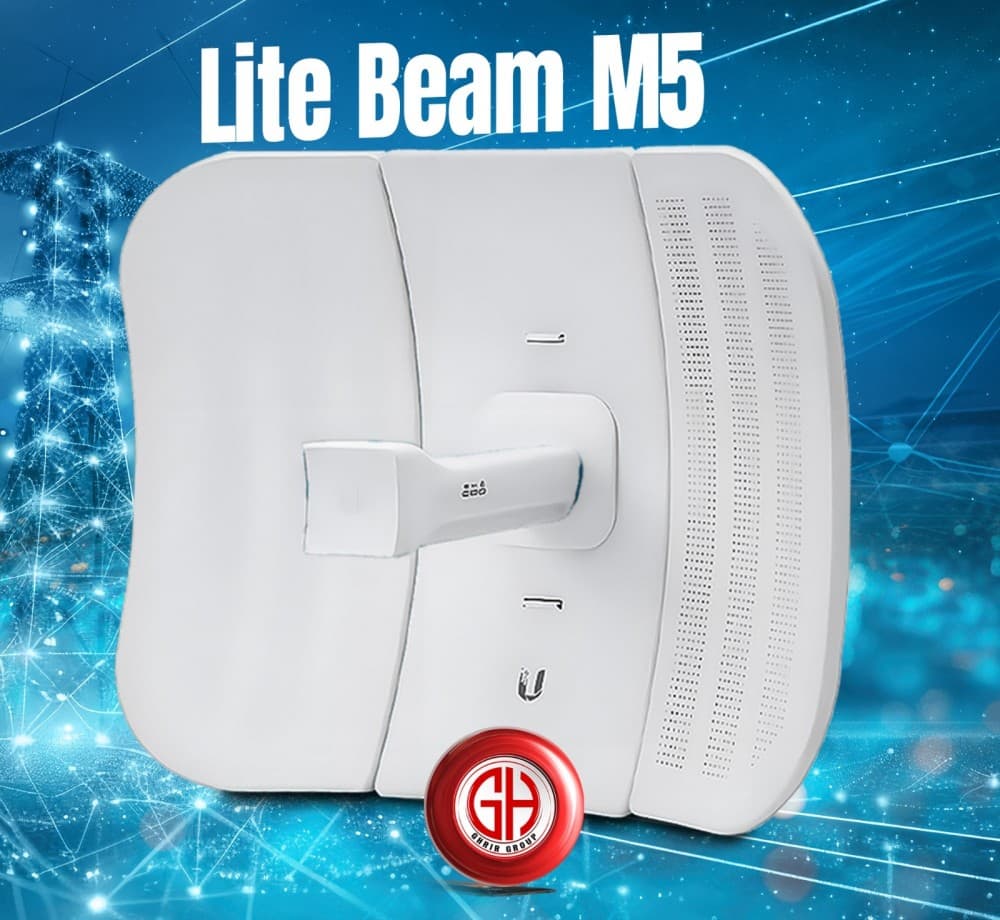

LiteBeam
#887
LiteBeam
65
Overview: The LBE-M5-23 is the latest evolution of a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment) from Ubiquiti Networks. The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredib…
Overview:
The LBE-M5-23 is the latest evolution of a lightweight and compact, outdoor wireless broadband CPE (Customer Premises Equipment) from Ubiquiti Networks. The LBE-M5-23 was designed to be an affordable cost/performance solution for long-distance, wireless broadband bridging. It operates in the worldwide, license-free 5 GHz frequency range and features high performance of up to 100+ Mbps in real outdoor throughput and an incredible range of up to 30+ km.
The LBE-M5-23 combines proprietary hardware and software technologies to deliver its breakthrough combination of throughput and range with cost-effective value. Its InnerFeed technology integrates the entire radio system into the feedhorn of the antenna, and our revolutionary airMAX TDMA protocol enhances network performance and scalability.
The LBE-M5-23 also features a unique ball joint mounting system that provides 3-axis adjustment flexibility for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
Application Examples


The LiteBeam mounted outdoors with the reflector installed
provides directional outdoor coverage (gain reflector-dependent).

The LiteBeam mounted outdoors without the reflector installed
provides outdoor-to-indoor coverage using the 3 dBi Antenna Feed only.

InnerFeed Technology
Ubiquiti's revolutionary InnerFeed technology integrates
the radio into the feedhorn of an antenna, so there is no need for a cable*.
This improves performance because it eliminates cable losses.
Providing high performance and robust all-in-one mechanical
design at a low cost, the NanoBridge is extremely versatile and cost-effective to deploy.
Integrated airMAX Technology
Unlike standard Wi-Fi protocol, the exclusive Ubiquiti Networks airMAX
Time Division Multiple Access (TDMA)
protocol allows each client to send and receive data using pre-designated
time slots managed by an intelligent AP controller. This "time slot"
method eliminates hidden node collisions and maximizes airtime efficiency.
Compared to other systems in its class, the LBE-M5-23 delivers superior
performance in reduced latency, throughput, and scalability.
- Intelligent QoS - Priority is given to voice/video seamless streaming.
- Scalability - High capacity and scalability.
- Long Distance - Capable of high-speed, 30+ km links.

Full Adjustment Flexibility
The LiteBeam features a unique ball joint mount that provides adjustment flexibility along three axes for versatile mounting options. The mounting system, coupled with the built-in bubble level, enables quick and easy alignment.
Quick, Snap-and-Lock Assembly
The all-new mechanical design makes assembling the LBE-M5-23 and LBE-5AC-23 – literally – a snap. No tools are required. Simply snap the feed, antenna panels, rear housing, and ball joint mount together for a secure, solid assembly.

Simply snap the feed, antenna panels, rear housing, and ball joint mount together for a secure, solid assembly.
Model Comparison
| LBE-M5-23 | LBE-5AC-23 | LBE-5AC-16-120 | |
|---|---|---|---|
| Frequency Band | 5 GHz | 5 GHz | 5 GHz |
| Antenna Gain | 23 dBi | 23 dBi | 16 dBi |
| Antenna Type | 1x1 SISO | 2x2 MIMO | 2x2 MIMO |
| Polarization | Vertical | Vertical + Horizontal | Vertical + Horizontal |
| airMAX ac | |||
| Gigabit Ethernet | |||
| Point-to-Point Functionality | |||
| Point-to-MultiPoint Functionality |
SISO Versus MIMO Functionality

Pricing Notes:
- Pricing and product availability subject to change without notice.
